Stripe

Connect Stripe to Juspay Hyperswitch to accept payments, manage webhooks, and enable multiple payment methods through a unified API integration.

Stripe connects to Hyperswitch as a PaymentGateway connector using HeaderKey authentication — a single secret key passed as Authorization: Bearer {secret_key} on every request. Notably, all requests to Stripe are sent as application/x-www-form-urlencoded (not JSON), and Hyperswitch pins a specific Stripe API version in the Stripe-Version header to ensure consistent behaviour. Hyperswitch translates its unified payment intent model into Stripe's PaymentIntent and Charge objects, mapping status transitions bidirectionally on every sync and webhook event.

Connector-Specific Notes

• Stripe is the only connector in Hyperswitch that supports incremental authorization alongside a full dispute evidence upload flow (file upload via Stripe's Files API, then evidence submission via the dispute ID) — both are part of the same connector implementation.

• Mandates and recurring payments: When Hyperswitch sets up a mandate via Stripe, Stripe returns a payment_method ID linked to a Customer object. Hyperswitch stores this ID and passes it on subsequent merchant-initiated transactions (MIT). The cardholder is never involved in subsequent charges.

• Webhook verification: Stripe sends a Stripe-Signature header with each event, formatted as t={timestamp},v1={signature}. Hyperswitch verifies this using HMAC-SHA256 where the message is {timestamp}.{raw_request_body}. The signing secret is found in Stripe under Developers → Webhooks → your endpoint → Signing secret — this is different from the API key and must be stored separately in Hyperswitch.

• Webhook events processed: payment_intent.payment_failed, payment_intent.succeeded, payment_intent.canceled, payment_intent.amount_capturable_updated, charge.succeeded, charge.refund.updated, source.chargeable, dispute.created, dispute.closed.

• Capture methods: Automatic, Manual, and SequentialAutomatic are supported. ManualMultiple and Scheduled are not.

• Supported card networks: Visa, Mastercard, American Express, Discover, JCB, Diners Club, UnionPay.

• BNPL payment methods (Klarna, Affirm, Afterpay/Clearpay) do not support mandates via Stripe; they support refunds only.

• For a full list of supported payment methods, visit hyperswitch.io/pm-list.

---

Activating Stripe via Hyperswitch

Prerequisites

1. You need to be registered with Stripe. Sign up at dashboard.stripe.com/register.

2. You should have a registered Hyperswitch account, accessible from the Hyperswitch control center.

3. Request Stripe support to enable raw card data handling for your Stripe account (see PCI compliance details). Without this, Hyperswitch cannot pass card data to Stripe directly — all card payments will fail at the Stripe API level before authorization.

4. Enter your Country, Business Label, and Stripe Secret Key in the Hyperswitch control center. The secret key is found in your Stripe dashboard under Developers → API keys. Use the Secret Key, which starts with sk_. Do not use the publishable key (pk_).

5. Select the payment methods you want to use with Stripe. These must match the methods enabled in your Stripe dashboard under Settings → Payments → Payment methods.

6. Navigate to Developers → Webhooks in your Stripe dashboard and create a new webhook endpoint.

Steps to activate Stripe on the Hyperswitch control center

---

Configuring Webhooks

Webhook delivery works as a two-hop chain: Stripe delivers events to Hyperswitch, and Hyperswitch forwards them to your endpoint.

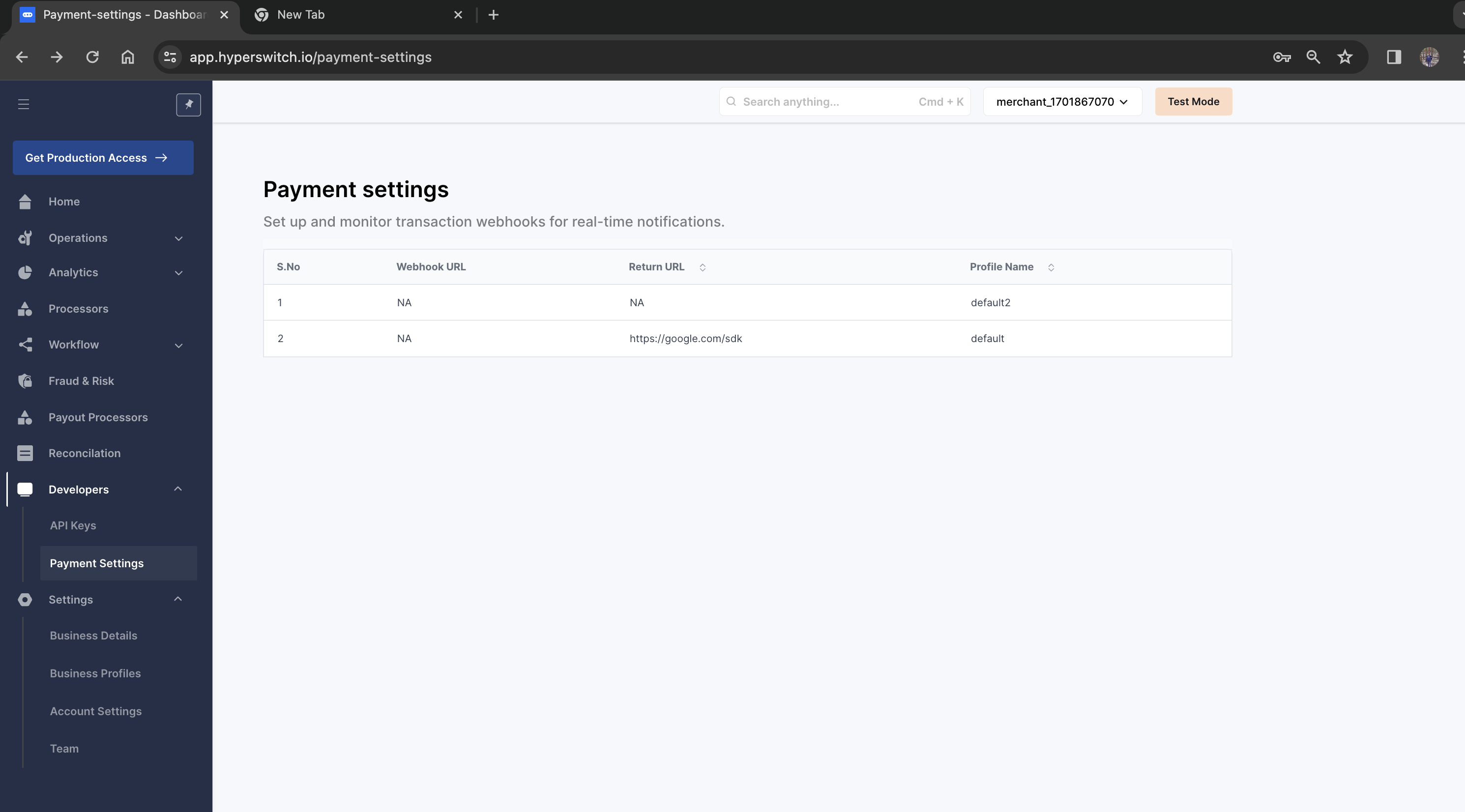

Step 1: Set up your webhook endpoint on the Hyperswitch dashboard under Settings → Payment settings → Click on the profile.

Step 2: Configure Hyperswitch's webhook endpoint on your Stripe dashboard. Find Hyperswitch's endpoint for your Stripe account by clicking Processors → Stripe.

---

Responsibility Boundaries

Hyperswitch owns: routing decisions, mandate record storage, retry scheduling, webhook fan-out to your endpoint, and unified error code mapping. Stripe owns: charge execution, fraud evaluation (Radar), payment method storage as Customer + PaymentMethod objects, and webhook delivery to Hyperswitch's endpoint. Stripe has no visibility into Hyperswitch's routing layer.

Hyperswitch owns: forwarding webhook events to your configured endpoint. Stripe owns: delivering webhook events to Hyperswitch's registered endpoint. If Stripe's delivery fails (wrong endpoint configured, network error), Hyperswitch has no record of the event and cannot forward it — use the Hyperswitch sync API to reconcile payment status in this case.

---

Common Failure Modes

Raw card data not enabled on Stripe account Symptom: Card payments are declined at Stripe before authorization. Fix: Contact Stripe support to enable raw card data handling for your account before going live.

Publishable key used instead of secret key Symptom: All API calls return HTTP 401 from Stripe. Fix: Replace with the secret key (sk_live_... or sk_test_...). The publishable key (pk_...) cannot authorize server-side payment operations.

Webhook signing secret mismatch Symptom: Stripe webhooks arrive at Hyperswitch but are rejected — payment and refund statuses do not update. Fix: The signing secret in Hyperswitch must match Developers → Webhooks → your endpoint → Signing secret in Stripe. This rotates independently of the API key.

Payment method enabled in Hyperswitch but not active in Stripe Symptom: Payments fail with payment_method_not_available from Stripe. Fix: Cross-check methods selected in the Hyperswitch connector configuration against Settings → Payments → Payment methods in your Stripe dashboard.

Incremental authorization attempted with automatic capture Symptom: Incremental authorization call fails. Fix: Incremental authorization requires capture_method: manual on the original payment. Stripe does not support incremental authorization on automatically-captured payments.

---

Connector implementation: crates/hyperswitch_connectors/src/connectors/stripe.rs. Webhook signature verification, Stripe Connect header handling, and the full payment method matrix are defined in the same file and its transformers/ submodule.
