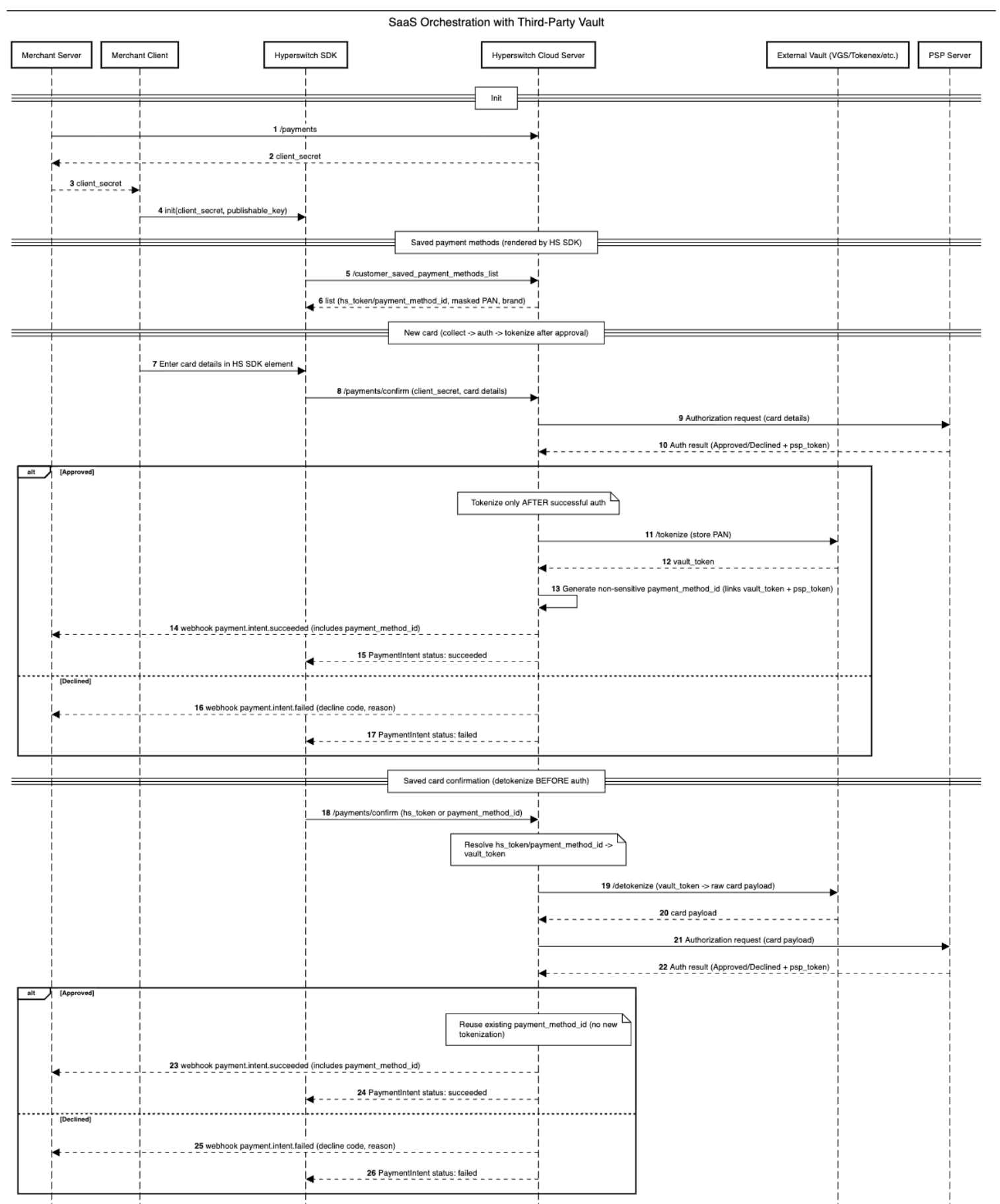

# SaaS Orchestration with Third-Party Vault Merchants using Juspay Hyperswitch SaaS can still integrate an external PCI-compliant vault. This setup is ideal for merchants who already have existing token infrastructure (e.g., VGS, Tokenex and more). ### Key Highlights * Combines the scalability of SaaS orchestration with external vault flexibility. * Supports Vault Proxy APIs for tokenization/de-tokenization. * Merchant retains token portability across platforms. ### Third party vault integration options
Merchant managed client with external vault's card formThe merchant directly integrates with the external vault SDK and card data is captured and tokenized using the external vault SDK
Hyperswitch managed client with External Vault's card formThe External Vault SDK is loaded onto the Hyperswitch Unified Checkout SDK. The card data is captured and tokenized using the external vault SDK
Hyperswitch managed client with native card formIn this approach, the Hyperswitch SDK is used to capture card details, but card storage and tokenization are handled by an external vault
### **Configuring External Vault on Hyperswitch** For External Vaults to work with Hyperswitch you need to configure the required API credentials on the Hyperswitch dashboard. You can do this by navigating to *Orchestrator > Connector > Vault Processor* and entering the required details. #### 1. Juspay Hyperswitch managed client and card form In this approach, the Hyperswitch SDK is used to capture card details, but card storage and tokenization are handled by an external vault. Hyperswitch backend orchestrates payments using tokens issued by the external vault. **New user payments flow** 1. Load the Hyperswitch [Payments SDK ](https://docs.hyperswitch.io/integration-guide/payment-experience/payment)via [Payments Create API request ](https://api-reference.hyperswitch.io/v1/payments/payments--create). The end-user enters their payment credentials for the selected payment option 2. The [Payment Confirm API request](https://api-reference.hyperswitch.io/v1/payments/payments--confirm) containing the payment method is sent to the PSP from Hyperswitch 3. Once the PSP responds with the outcome `approved` or `declined` along with the PSP token, Hyperswitch then proceeds to store and tokenize the card. 4. The card is stored in external vault, which returns a `vault_token` 5. Upon receiving the `vault_token`, Hyperswitch generates a `payment_method_id`. A `payment_method_id` is a versatile token and connects a lot of entities together like `customer_id`, `psp_token`, `vault_token` 6. This `payment_method_id` is returned to the merchant via webhooks **Repeat user payments flow** 1. In a repeat-user payment, the Hyperswitch SDK will load the stored payment methods of the customer based the `customer_id` sent as part of the [Payments Create API request ](https://api-reference.hyperswitch.io/v1/payments/payments--create). 2. The end-user can select the desired payment option and add their `CVV` 3. The SDK sends the [Payment Confirm API request](https://api-reference.hyperswitch.io/v1/payments/payments--confirm) when the user hits `Pay` 4. The Hyperswitch backend resolves the `payment_method_id` to identify available `vault_token` 1. Hyperswitch can use the `detokenize` flow to obtain the raw card in exchange for the `vault_token`. It will then send payload with the raw card credential to the payment provider or PSP downstream. **Merchant Initiated Transaction (MIT) flow** 1. The merchant can perform the [MIT or Recurring transactions](https://docs.hyperswitch.io/integration-guide/payment-suite/payments/recurring-payments) using `payment_method_id`

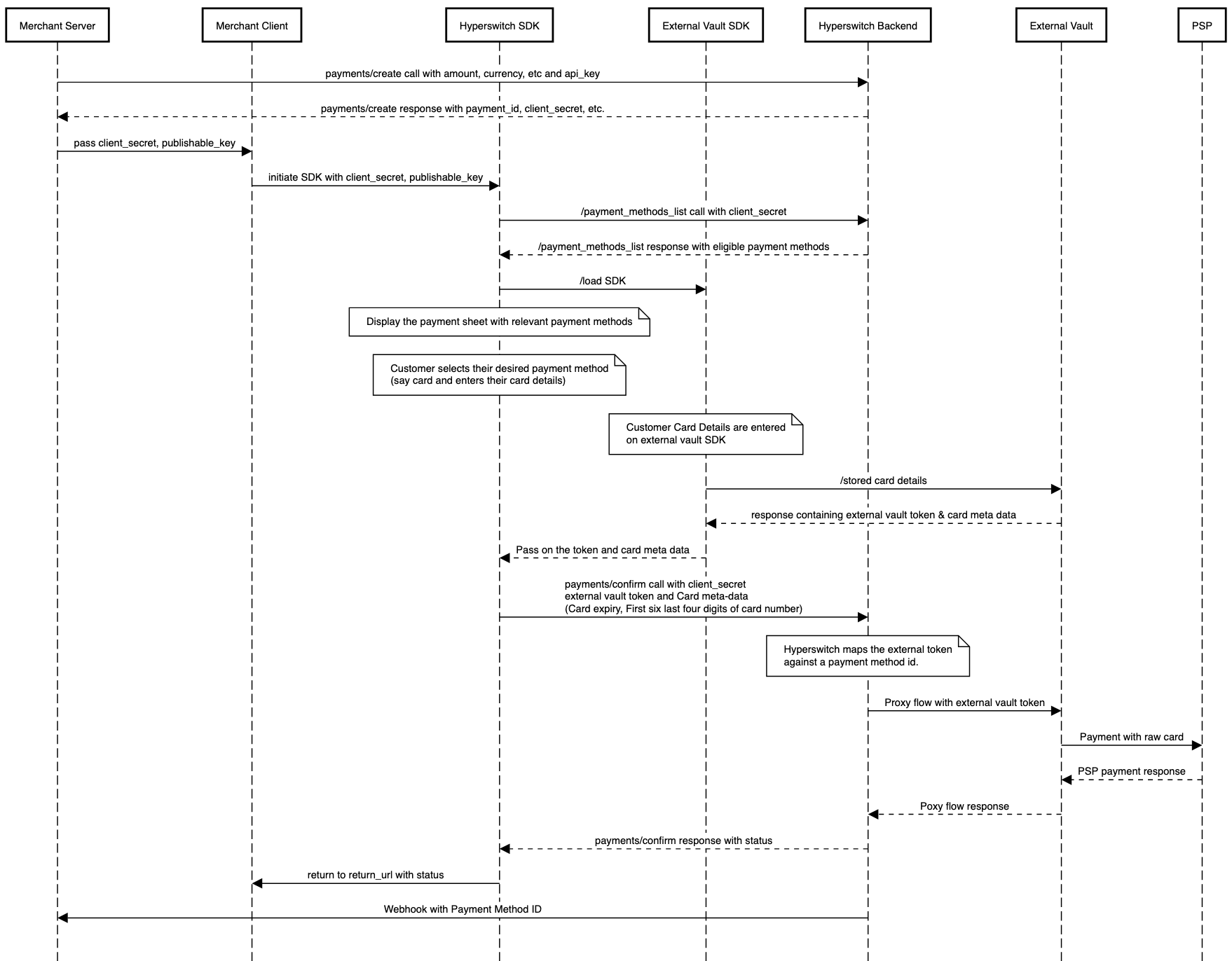

#### 2. Juspay Hyperswitch managed client with External Vault's card form In this flow, the External Vault SDK is layered directly onto the Hyperswitch Unified Checkout SDK. The External Vault SDK captures card details and tokenizes them immediately at the vault. This ensures that sensitive card data never touches the Hyperswitch server. **New user payments flow** 1. Load the Hyperswitch [Payments SDK ](https://docs.hyperswitch.io/integration-guide/payment-experience/payment)via [Payments Create API request ](https://api-reference.hyperswitch.io/v1/payments/payments--create). The end-user enters their payment credentials for the selected payment option. The Hyperswitch SDK in-turn loads the external vault SDK that has been configured in the merchant account. 2. The end-user enters their payment credentials for card payment method directly in the external vault SDK 3. The external vault SDK returns a `vault_token` and associated card metadata to the Hyperswitch SDK 4. The [Payment Confirm API request](https://api-reference.hyperswitch.io/v1/payments/payments--confirm) containing the `vault_token` and associated card metadata is sent to Hyperswitch server by the Hyperswitch SDK 5. Hyperswitch server then creates the PSP payload based on the payment providers or PSPs configured for the merchant 6. This PSP Payload containing the `vault_token` is sent to the Proxy endpoint of the external vault 7. The external vault replaces the `vault_token` with the raw card and sends the request to the PSP 8. Once the PSP responds with the outcome `approved` or `declined` along with the PSP token, the Proxy endpoint of the external vault sends the response back to Hyperswitch server 9. Upon receiving the `vault_token`, Hyperswitch generates a `payment_method_id`. A `payment_method_id` is a versatile token and connects a lot of entities together like `customer_id`, `psp_token`, `vault_token` 10. This `payment_method_id` and `vault_token` are returned to the merchant via webhooks **Repeat user payments flow** 1. In a repeat-user payment, the Hyperswitch SDK will load the stored payment methods of the customer based the `customer_id` sent as part of the [Payments Create API request](https://api-reference.hyperswitch.io/v1/payments/payments--create). 2. The end-user can select the desired payment option and add their `CVV` 3. The SDK sends the [Payment Confirm API request](https://api-reference.hyperswitch.io/v1/payments/payments--confirm) API request to the Hyperswitch server when the user hits `Pay` 4. The Hyperswitch backend resolves the `payment_method_id` to identify available `vault_token` 1. Hyperswitch can use the `detokenize` flow to obtain the raw card in exchange for the `vault_token`. It will then send payload with the raw card credential to the payment provider or PSP downstream. **Merchant Initiated Transaction (MIT) flow** 1. The merchant can perform the [MIT or Recurring transactions](https://docs.hyperswitch.io/integration-guide/payment-suite/payments/recurring-payments) using `payment_method_id`
#### 3. Merchant managed client with external vault's card form The merchant integrates with external vault SDK which manages the card data and user experience entirely independent of the Hyperswitch. The card is tokenized directly with the chosen vault, after which merchant will have to pass the token returned by external vault along with the card metadata to Hyperswitch to process the payment. **New user payments flow** 1. Load the external vault SDK that has been integrated directly by the merchant. 2. The end-user enters their payment credentials for card payment method directly in the external vault SDK. 3. The external vault SDK returns a `vault_token` and associated card metadata. 4. The merchant will use [Payments Create API request](https://api-reference.hyperswitch.io/v1/payments/payments--create) to send the `vault_token` and associated card metadata to Hyperswitch server. 5. Hyperswitch server then creates the PSP payload based on the payment providers or PSPs configured for the merchant 6. This PSP Payload containing the `vault_token` is sent to the Proxy endpoint of the external vault 7. The external vault replaces the `vault_token` with the raw card and sends the request to the PSP 8. Once the PSP responds with the outcome `approved` or `declined` along with the PSP token, the Proxy endpoint of the external vault sends the response back to Hyperswitch server 9. Upon receiving the `vault_token`, Hyperswitch generates a `payment_method_id`. A `payment_method_id` is a versatile token and connects a lot of entities together like `customer_id`, `psp_token`, `vault_token` 10. This `payment_method_id` and `vault_token` are returned to the merchant via webhooks **Repeat user payments flow** 1. In a repeat-user payment, the merchant needs to load the stored payment methods of the customer based the `customer_id` sent as part of the [Payment Method - List Customer Saved Payment Methods](https://api-reference.hyperswitch.io/v2/payment-methods/payment-method--list-customer-saved-payment-methods-v1) API request. 2. The end-user can select the desired payment option and add their `CVV`. This `CVV` is entered directly into the elements provided by external vault. 3. The external vault tokenizes the CVV temporarily and returns a `temp_vault_token` 4. The merchant will use [Payments Create API request](https://api-reference.hyperswitch.io/v1/payments/payments--create) to send the `vault_token` and the `temp_vault_token` of the card selected by the end user. 5. Hyperswitch server then creates the PSP payload based on the payment providers or PSPs configured for the merchant 6. This PSP Payload containing the `vault_token` and `temp_vault_token` is sent to the Proxy endpoint of the external vault 7. The external vault replaces the `vault_token` with raw card, the `temp_vault_token` with CVV and sends the request to the PSP 8. Once the PSP responds with the outcome `approved` or `declined` along with the PSP token, the Proxy endpoint of the external vault sends the response back to Hyperswitch server **Merchant Initiated Transaction (MIT) flow** 1. The merchant can perform the [MIT or Recurring transactions](https://docs.hyperswitch.io/integration-guide/payment-suite/payments/recurring-payments) using `vault_token`
