Self-hosted Orchestration with SaaS Vault

Self-host Hyperswitch orchestration while using SaaS Hyperswitch Vault for PCI compliance

Deployment Model: Merchant self-hosts Hyperswitch Payment Orchestration Layer

PCI Scope: Managed by SaaS Hyperswitch Vault

Overview

In this deployment model, merchants self-host the Juspay Hyperswitch orchestration layer on their own infrastructure while using SaaS Hyperswitch Vault for all PCI DSS responsibilities. Sensitive cardholder data (PAN, CVV, expiry) is stored and managed by Hyperswitch's PCI-compliant SaaS Vault, never touching the merchant's servers.

This architecture gives merchants full control over orchestration logic, routing rules, and business configurations while completely eliminating the burden of achieving and maintaining PCI DSS Level 1 compliance in-house.

Why This Model?

Concern	How It's Addressed
PCI Compliance	Fully managed by SaaS Hyperswitch Vault
Hosting Independence	Merchant retains complete control of the Hyperswitch orchestration deployment
Sensitive Data Exposure	Raw card data never enters the merchant's environment
Token Portability	payment_method_id unifies vault_token + psp_token + customer_id for cross-platform use
Operational Simplicity	No need to manage HSMs, key rotation, or cardholder data environments
Network Tokenization	Automatic provisioning and lifecycle management of network tokens

Key Benefits

• Zero PCI Scope for Orchestration: Your self-hosted orchestration layer operates completely outside PCI scope

• Full Orchestration Control: Customize routing rules, retry logic, and payment workflows

• Managed Vault Infrastructure: Hyperswitch handles vault scaling, security, and compliance

• Seamless Integration: Simple API integration between your orchestration layer and SaaS Vault

• Cost-Effective: Avoid infrastructure costs for PCI-compliant vault hosting

Integration Steps

SDK Integration

The merchant loads the Hyperswitch Unified Checkout SDK, which embeds the SaaS Hyperswitch Vault SDK to collect card information for tokenization via SaaS Hyperswitch Vault.

New User Payment Flow

1. The merchant loads the Hyperswitch Payments SDK via a Payments Create API request from their self-hosted Hyperswitch backend which embeds SaaS Hyperswitch Vault SDK.

2. The end user enters their card details directly into the Hyperswitch Vault SDK's secure fields.

3. The SDK tokenizes the card via SaaS Hyperswitch Vault and returns a payment_method_id along with card metadata (last four digits, card brand, expiry).

4. The SDK sends a Payment Confirm API request to the self-hosted Hyperswitch backend.

5. The self-hosted Hyperswitch backend processes the payment using the payment_method_id and sends the transaction to the PSP via SaaS Hyperswitch Vault Proxy.

6. The PSP responds with approved or declined and sends back PSP token if setup_future_usage is off_session.

Repeat User Payment Flow

1. The Hyperswitch SDK loads stored payment methods using the customer_id from the Payments Create API request.

2. The end user selects a saved card and optionally enters CVV.

3. The SDK sends a Payment Confirm API request with the payment_method_id.

4. The self-hosted Hyperswitch backend resolves the payment_method_id to identify the associated SaaS Hyperswitch Vault Token.

5. The payment is processed by sending the transaction to the corresponding PSP via SaaS Vault Proxy.

Merchant-Initiated Transaction (MIT) Flow

1. The merchant triggers an MIT or Recurring transaction using the payment_method_id.

2. The self-hosted Hyperswitch backend resolves the payment_method_id to identify the associated psp_token.

3. The payment is processed by sending the transaction to the corresponding PSP as a MIT.

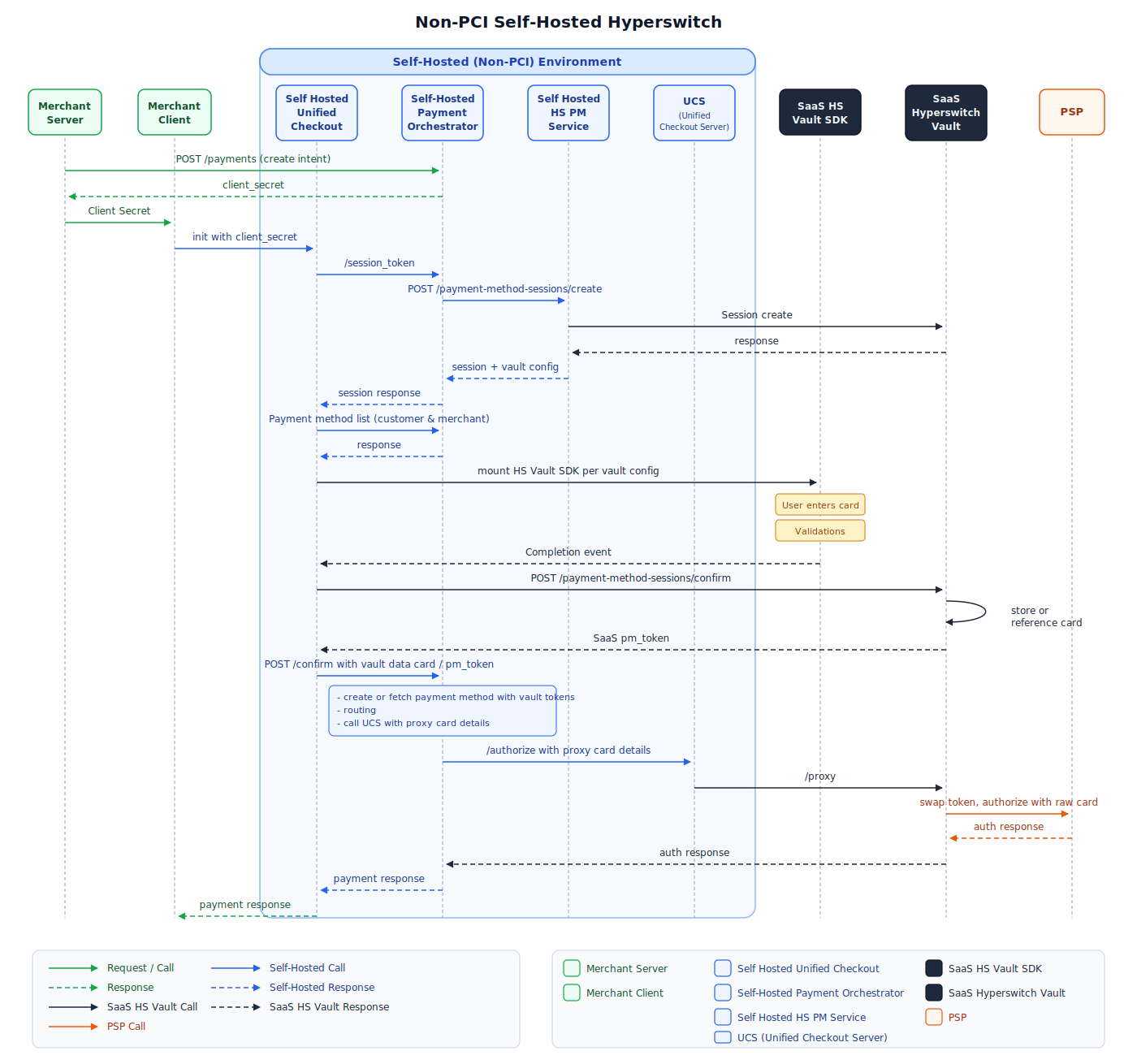

Payment flow showing self-hosted orchestration layer with SaaS Hyperswitch Vault

Configuration

Step 1: Generate API Key

1. Access Dashboard — Log into the Hyperswitch Control Centre.

2. Navigate to API Keys — In the left-hand navigation menu, select Developers > API Keys.

3. Create Key — Click Create New API Key.

4. Secure Storage — Copy the generated key immediately and store it securely (it will not be shown again).

Navigate to Developers > API Keys to create and manage your API credentials

Step 2: Access Profile ID

1. Navigate to Payment Settings — In the left-hand navigation menu, select Developers > Payment Settings.

2. Copy Profile ID — Locate and copy your Profile ID from the Payment Settings page.

Navigate to Developers > Payment Settings to access your Profile ID

Step 3: Enable Vault Connector

1. Navigate to Connectors — In the left-hand navigation menu, select Connectors.

2. Add Vault Connector — Search for Hyperswitch Vault and click Connect.

3. Configure Credentials — Enter your API Key and Profile ID.

4. Enable Connector — Toggle the connector to Enabled status.

Configure and enable the Hyperswitch Vault connector

Enter your API credentials to connect to SaaS Hyperswitch Vault

Step 4: Configure Self-Hosted Backend

Configure your self-hosted Hyperswitch backend to connect to the SaaS Hyperswitch Vault:

1. Set the vault endpoint in your Hyperswitch configuration to point to https://api.hyperswitch.io

2. Configure your API key and Profile ID in the orchestration layer

3. Test the connection by creating a test payment method token

For detailed self-hosting setup instructions, refer to the Self-Hosting Guide.

Key Concepts

payment_method_id

A universal, portable token generated by Hyperswitch that serves as the single reference for a stored payment method. It connects:

Entity	Description
customer_id	The Hyperswitch customer identifier
vault_token	The token issued by SaaS Hyperswitch Vault representing the stored card
psp_token	The token issued by the PSP after a successful transaction

This abstraction allows merchants to:

• Switch PSPs without re-collecting card data

• Use a single identifier across all payment flows (first-time, repeat, MIT/recurring)

• Maintain data portability across different deployment models

Comparison: Self-Hosted Orchestration Models

Feature	Self-Hosted + Self-Hosted Vault	Self-Hosted + SaaS Vault (This Model)	Self-Hosted + Third-Party Vault
Orchestration Hosting	Merchant	Merchant	Merchant
Vault Hosting	Merchant	Hyperswitch SaaS	Third-Party (VGS, TokenEx)
PCI Scope	Merchant (Level 1)	Hyperswitch	Third-Party Provider
Infrastructure Cost	High	Medium	Medium-High
Orchestration Control	Full	Full	Full
Setup Complexity	High	Low	Medium
Network Tokenization	Manual Setup	Automatic	Depends on Provider

Security Considerations

• TLS Everywhere: All communication between your orchestration layer and SaaS Vault uses TLS 1.2+

• API Key Security: Store API keys securely using environment variables or secrets management

• Network Isolation: Consider using VPC peering or private endpoints for enhanced security

• Webhook Verification: Always verify webhook signatures for payment_method_id callbacks

• Regular Updates: Keep your self-hosted orchestration layer updated with the latest Hyperswitch releases

Use Cases

This deployment model is ideal for:

• Mid-Size Businesses: Companies wanting orchestration control without PCI burden

• Multi-Region Operations: Organizations needing regional orchestration with centralized vault

• Custom Payment Logic: Businesses with complex routing and retry requirements

• Compliance-Conscious Teams: Organizations wanting to minimize PCI scope while maintaining control

Next Steps

1. Set up your self-hosted Hyperswitch orchestration

2. Configure vault integration with SaaS Hyperswitch Vault

3. Integrate the Hyperswitch SDK for payment collection

4. Set up webhooks for payment notifications

Related Documentation

• Self-Hosting Guide

• Vault SDK Integration

• Server-to-Server Tokenization

• Recurring Payments
