Configuration

Configure Juspay Hyperswitch Vault on the dashboard — API key generation, profile settings, and external vault connections

This page is the single canonical reference for all Vault configuration steps on the Hyperswitch Control Centre. Every integration guide in the Vault section links here instead of repeating these steps.

1. Generating Vault API Keys

Step 1: Generate API Key

  1. Access Dashboard — Log into the Hyperswitch Control Centre.

  2. Navigate to API Keys — In the left-hand navigation menu, select Developers > API Keys.

  3. Create Key — Click Create New API Key.

  4. Secure Storage — Copy the generated key immediately and store it securely (it will not be shown again). Use this key in the Authorization: api-key=<YOUR_VAULT_API_KEY> header for all Vault API calls.

API Keys Dashboard
Navigate to Developers > API Keys to create and manage your API credentials

Step 2: Access Profile ID

  1. Navigate to Payment Settings — In the left-hand navigation menu, select Developers > Payment Settings.

  2. Copy Profile ID — Locate and copy your Profile ID from the Payment Settings page. This ID is required for API calls that need to specify which merchant profile to use.

Payment Settings - Profile ID
Navigate to Developers > Payment Settings to access your Profile ID

2. Connecting External Vault Providers

Merchants who want to use a third-party vault (VGS, TokenEx, Voltage, HashiCorp, etc.) alongside Hyperswitch Orchestration can add external vault credentials from the dashboard.

Steps:

  1. Navigate to Vault Processor — In the left-hand navigation menu, select Connectors > Vault Processor.

  2. Configure Vault Provider — Add your third-party vault provider credentials and configuration.

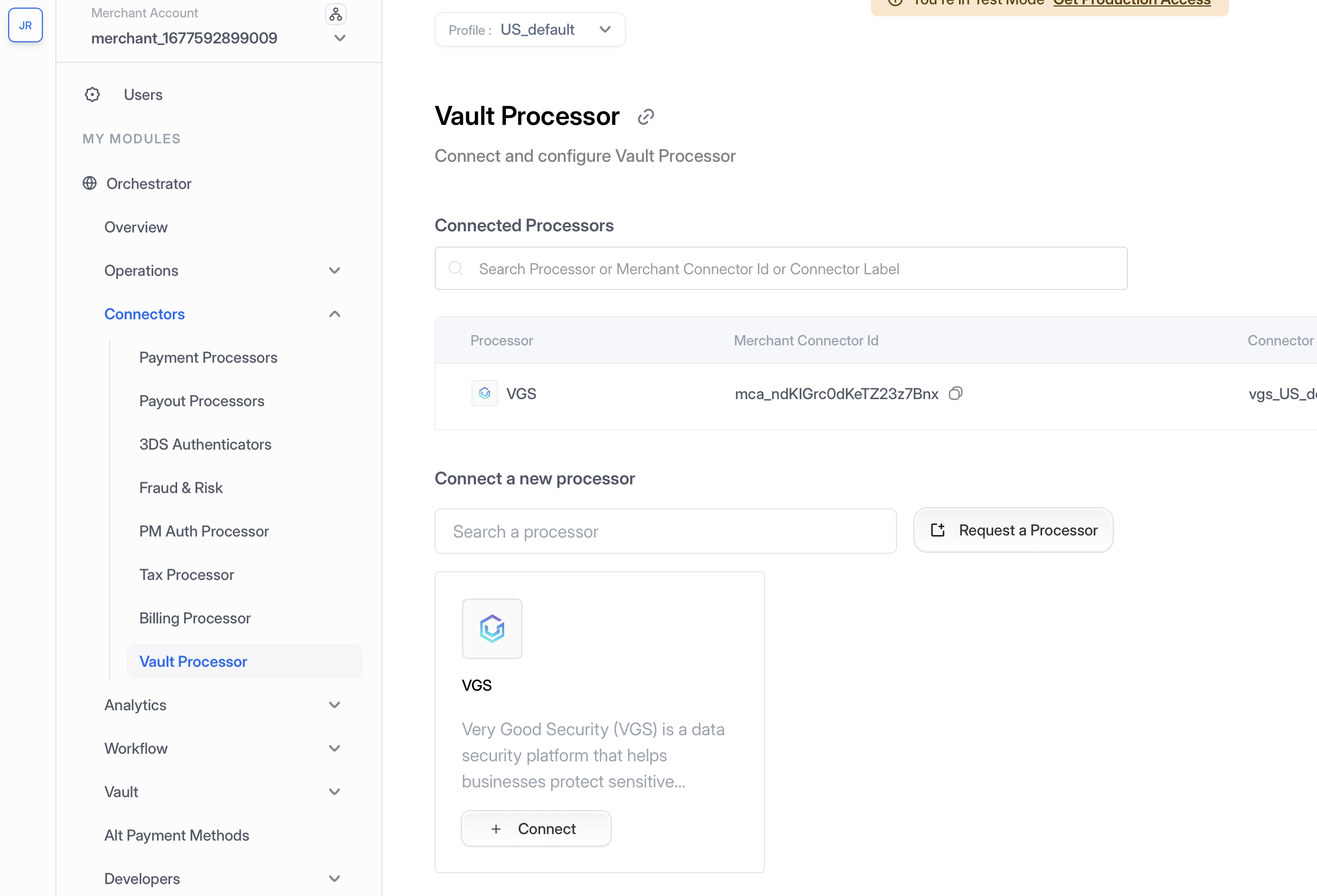

Vault Processor Setup
Navigate to Connectors > Vault Processor to configure your third-party vault

  1. Enable in Payment Settings — Navigate to Developers > Payment Settings, under Vault tab, enable the external vault and choose the vault processor from the dropdown, then click Update.

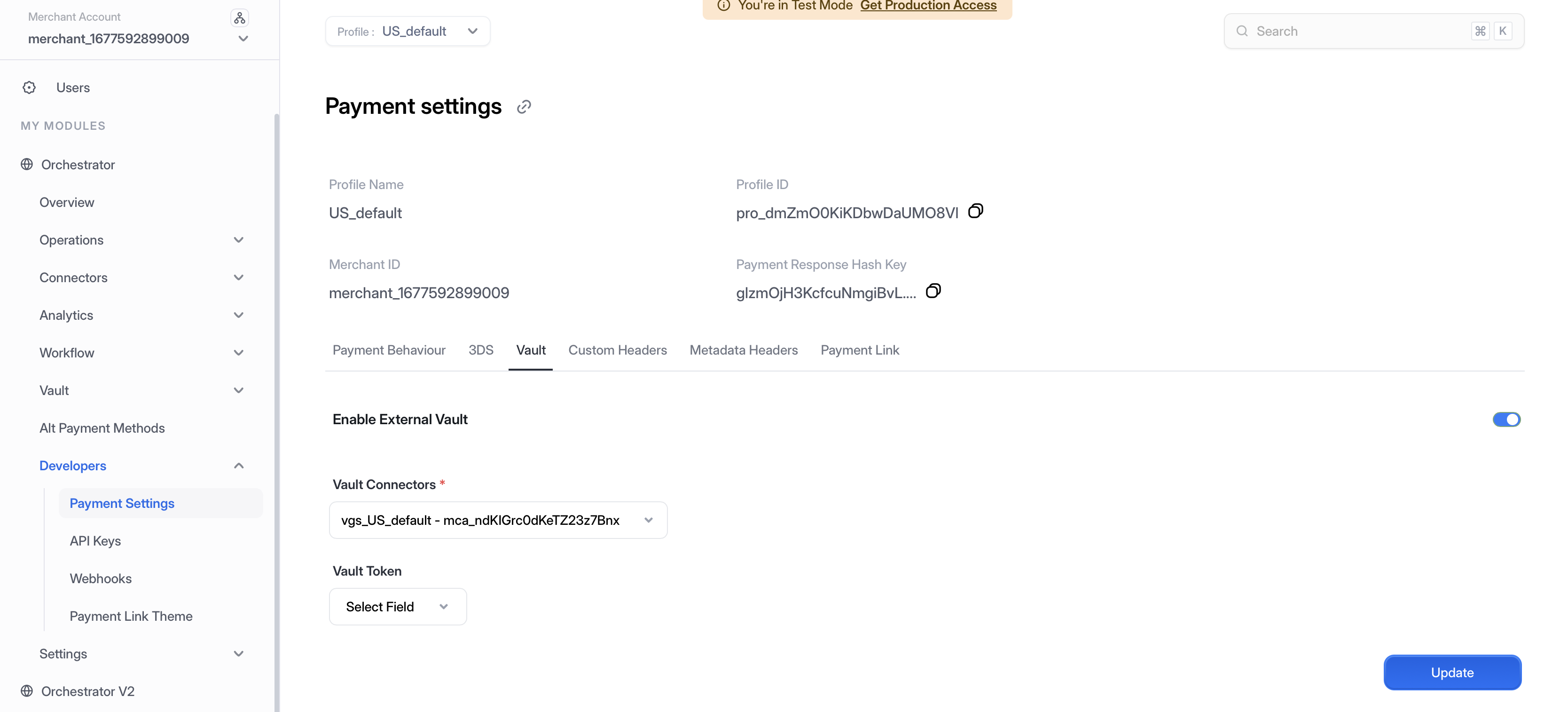

Enable Vault in Payment Settings
Navigate to Developers > Payment Settings to enable your third-party vault

  1. Hyperswitch will now route tokenization and de-tokenization through your external vault.

Refer to SaaS Orchestration with Third-Party Vault for the end-to-end payment flow once a provider is connected.

3. Vault Setup for Platform Organizations

If you operate a Platform Organization (multiple Connected merchants under one umbrella), note the following:

  • Vault API keys must be scoped to the correct merchant level. Platform Merchants should generate a Platform-level Vault API key for managing cross-merchant tokens.

  • Connected merchants share Customer and Payment Method scope — a payment_method_id created for one Connected merchant is accessible to the Platform Merchant and other Connected merchants.

  • Standard merchants maintain isolated vault scope — their Payment Methods are never shared across merchants in the same organization.

For the full platform setup guide, see Platform Org and Merchant Setup.

5. Quick Reference: Required Headers for Vault API Calls

Sandbox base URL: https://sandbox.hyperswitch.io

Production base URL: https://api.hyperswitch.io
